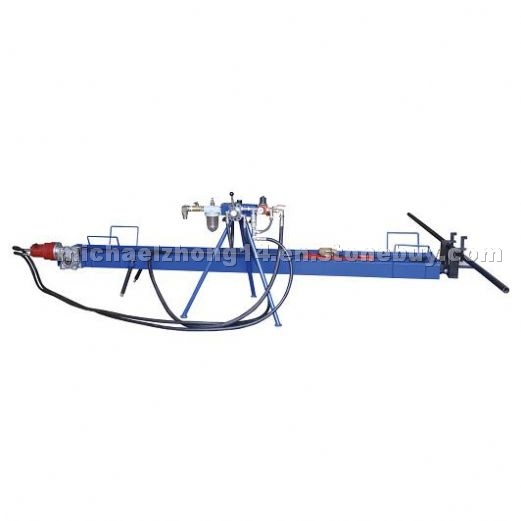

Horizontal Rock Driller WZH-28-2000

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1440067

• Place of Origin:

  China
• 1. Be used exclusively in quarry, available for horizontal drilling with accuracy to divide large blocks into small pieces.
  2. Lying flat against the ground, the machine can make horizontal drilling. The guide tube 3 meter long in front of it ensures that the drillings are in one plane and heightens the smoothness of division.
  3. The machine is light in weight and can move easily in the mine
  4. The front part of the machine is connected with pin, which is useful for adjusting at a particular angle and fulfilling the adjustment of locating point of stone drilling. Equipped with special wedge, it possesses high practicality.
  5. Adopting chain wheel and chain bar to push forward, the machine can drill in automatically, increase the speed, and moreover, it permits the drill height from the ground at a minimum distance when drilling horizontally and has enough wrest power.
  Code No.WZH-28-2000
  Hole HammerYT-28
  Drilling Depth6m(Track Length 2m)
  Compressed Air Consumption7m3/min
  Total Weight200Kg
  Air Pressure0.5-0.7 MPa
  Drilling Speed40~60m/h

  Brand Name:HUADA
  Price Terms:FOB Xiamen
  Payment Term:T/T, 100 T/T in advance
  Packing Info:Wooden Case
  Delivery Time:according to inquiry
  Minimum Order:1 setSupply
  Ability:50 sets
  Certificate: CE and ISO9001
