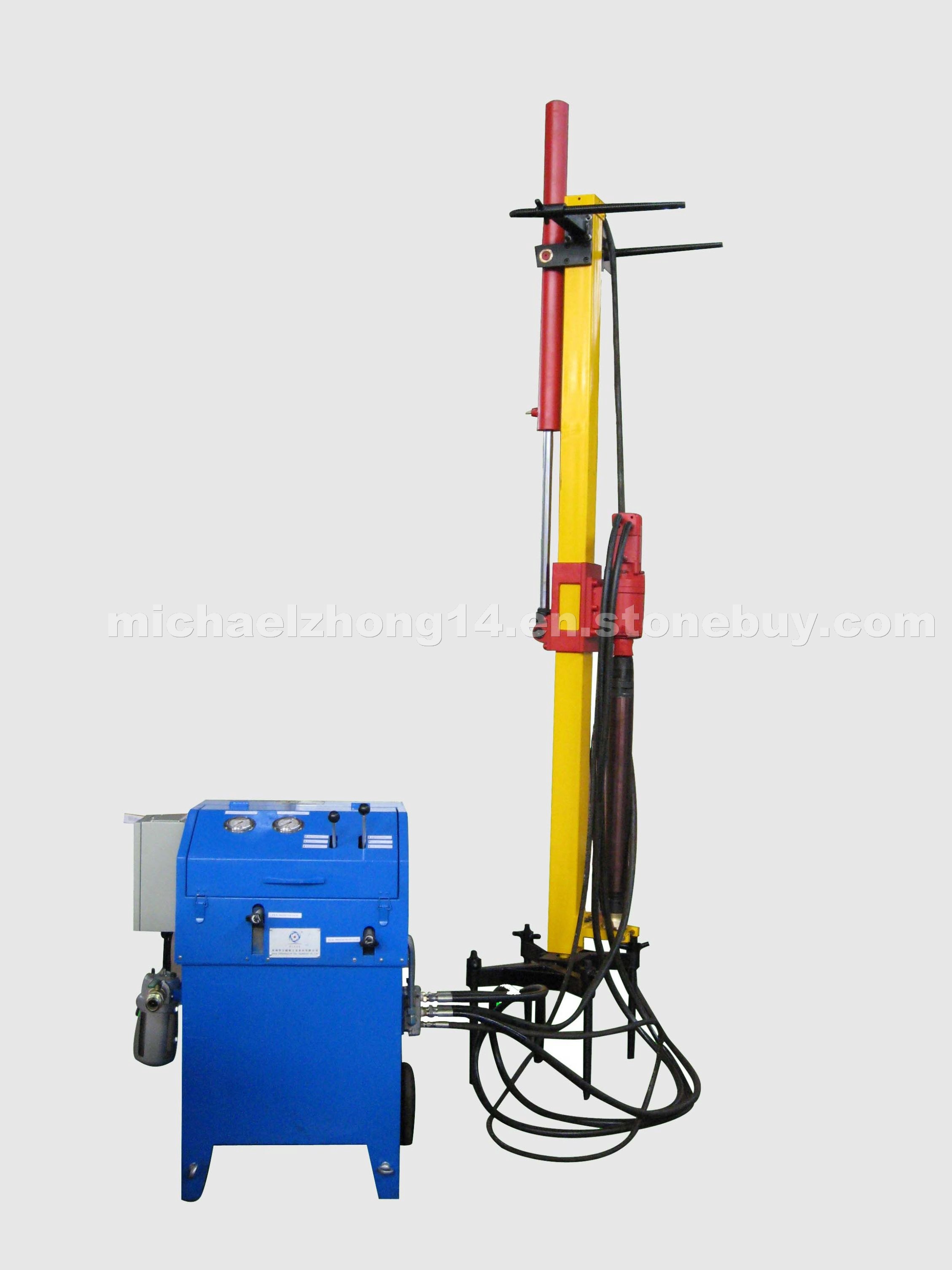

Pneumatic Hydraulic D-T-H Drilling Machine

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1439311

• Place of Origin:

  China
• Pneumatic Hydraulic D-T-H Drilling Machine QYZ65-90B

  It is mainly used primary and secondary drilling in all stone quarries and available for vertical, horizontal and slant drilling. It should be used for drilling before wire saw cutting.
  Item Pneumatic Hydraulic D-T-H Drilling Machine QYZ65-90B
  Max. Depth of Drilling 35-40m
  diameter of drilling ￠65-90mm
  Drilling speed 6~8m/h
  minimum air pressure 0. 5-0. 7MPa
  total Compressed air consumption 7-9m3/min
  the hole hammer Φ65-90
  track travel 1m
  advance device Hydraulic cylinder
  the pneumatic rotation head Hydraulic motor
  drilling direction any direction
  Adjust height of the down jack 220mm
  pneumatic control panel remote control, manual change direction
  Total weight 375Kg(with hydraulic station)

  Brand Name:HUADA
  Price Terms:FOB Xiamen
  Payment Term:T/T, 100 T/T in advance
  Packing Info:Wooden Case
  Delivery Time:according to inquiry
  Minimum Order:1 setSupply
  Ability:50 sets
  Certificate: CE and ISO9001
